How to open XAML files in the Silverlight tab control

In this article we will be seeing how to open the xaml files in the Silverlight tab controls. For Silverlight tab controls refer to Silverlight- TabControl Example Part 1 and Silverlight- TabControl Example Part 2.

Here we will be creating the three xaml files StackPanel.xaml, Canvas.xaml and Grid.xaml.

On click of each tab item xaml files will be opened ( On click of StackPanel => StackPanel.xaml will be opened, Canvas => Canvas.xaml will be opened, Grid => Grid.xaml will be opened). To create a Silverlight Application:

1. Open Visual Studio 2010.

2. Go to File => New => Project.

3. Select Silverlight from the Installed templates and choose the Silverlight Application template.

4. Enter the Name and choose the location.

5. Click OK.

6. In the New Silverlight Application wizard check the "Host the Silverlight Application in a new Web site".

7. Click OK.


StackPanel.xaml:

1. Right click on the solution, Add => New Item.

2. Select Silverlight User Control and enter the Name as StackPanel.xaml.

3. Click Ok.

4. Open the StackPanel.xaml and replace the code with the following.

<StackPanel Orientation="Vertical"> <Rectangle Height="50" Width="50" Fill="Gray" Opacity="0.2"></Rectangle> <Rectangle Height="50" Width="50" Fill="Gray" Opacity="0.4"></Rectangle> <Rectangle Height="50" Width="50" Fill="Gray" Opacity="0.6"></Rectangle> <Rectangle Height="50" Width="50" Fill="Gray" Opacity="0.8"></Rectangle> <Rectangle Height="50" Width="50" Fill="Gray" Opacity="1"></Rectangle> </StackPanel>

Canvas.xaml:

1. Right click on the solution, Add => New Item.

2. Select Silverlight User Control and enter the Name as Canvas.xaml.

3. Click Ok.

4. Open the Canvas.xaml and replace the code with the following.

<Canvas Height="250" Width="300" Background="White"> <Rectangle Height="200" Width="200" Canvas.Left="50" Canvas.Top="50"Fill="Gray"  Opacity="0.1"  /> <Rectangle Height="180" Width="180" Canvas.Left="60" Canvas.Top="60"Fill="Gray" Opacity="0.2" /> <Rectangle Height="160" Width="160" Canvas.Left="70" Canvas.Top="70"Fill="Gray" Opacity="0.3" /> <Rectangle Height="140" Width="140" Canvas.Left="80" Canvas.Top="80"Fill="Gray" Opacity="0.4" /> <Rectangle Height="120" Width="120" Canvas.Left="90" Canvas.Top="90"Fill="Gray" Opacity="0.5" /> <Rectangle Height="100" Width="100" Canvas.Left="100" Canvas.Top="100"Fill="Gray" Opacity="0.6" /> <Rectangle Height="80" Width="80" Canvas.Left="110" Canvas.Top="110"Fill="Black" Opacity="0.3" /> <Rectangle Height="60" Width="60" Canvas.Left="120" Canvas.Top="120"Fill="Black" Opacity="0.4" /> <Rectangle Height="40" Width="40" Canvas.Left="130" Canvas.Top="130"Fill="Black" Opacity="0.5" /> <Rectangle Height="20" Width="20" Canvas.Left="140" Canvas.Top="140"Fill="Black" Opacity="0.6" /> </Canvas> Grid.xaml:

1. Right click on the solution, Add => New Item.

2. Select Silverlight User Control and enter the Name as Grid.xaml.

3. Click Ok.

4. Open the Grid.xaml and replace the code with the following.

<Grid x:Name="layoutRoot" ShowGridLines="True"  Height="200" Width="350"Background="Orange"> <Grid.RowDefinitions> <RowDefinition Height="32*" /> <RowDefinition Height="121*" /> </Grid.RowDefinitions> <TextBlock Text="PROFILE" FontFamily="Verdana" FontSize="14" FontWeight="Bold" Foreground="White" Margin="14,20,-14,99" Grid.RowSpan="2"> </TextBlock> <Grid Grid.Row="1" ShowGridLines="True" Background="White"> <Grid.ColumnDefinitions> <ColumnDefinition Width="144*" /> <ColumnDefinition Width="256*" /> </Grid.ColumnDefinitions> <Grid.RowDefinitions> <RowDefinition Height="50*" /> <RowDefinition Height="50*" /> <RowDefinition Height="50*" />

<RowDefinition Height="50*" /> <RowDefinition Height="50*" /> </Grid.RowDefinitions> <TextBlock Text="Name :" FontFamily="Verdana" Grid.Row="1" Grid.Column="0" FontSize="14" FontWeight="Bold" Foreground="Green" Margin="14,10,-14,21"Grid.RowSpan="2" ></TextBlock> <TextBlock Text="About Me :" FontFamily="Verdana" Grid.Row="2"Grid.Column="0" FontSize="14" FontWeight="Bold" Foreground="Green" Margin="14,10,-14,21"Grid.RowSpan="2" ></TextBlock> <TextBlock Text="Country :" FontFamily="Verdana" Grid.Row="3"Grid.Column="0" FontSize="14" FontWeight="Bold" Foreground="Green" Margin="14,10,-14,21"Grid.RowSpan="2" ></TextBlock> <TextBlock Text="Vijai Anand.R" FontFamily="Verdana" Grid.Row="1"Grid.Column="1" FontSize="14" FontWeight="Bold" Foreground="Green" Margin="14,10,-14,21"Grid.RowSpan="2"></TextBlock> <TextBlock Text="SharePoint Developer" FontFamily="Verdana" Grid.Row="2"Grid.Column="1" FontSize="14" FontWeight="Bold"Foreground="Green" Margin="14,10,-14,21" Grid.RowSpan="2"></TextBlock> <TextBlock Text="India" FontFamily="Verdana" Grid.Row="3" Grid.Column="1"FontSize="14" FontWeight="Bold" Foreground="Green"Margin="14,10,-14,21"Grid.RowSpan="2"></TextBlock> </Grid> </Grid>

MainPage.xaml:

1. Right click on the solution, Add => New Item.

2. Select Silverlight User Control and enter the Name as Grid.xaml.

3. Click Ok.

4. Open the Grid.xaml and replace the code with the following. (Register the Namespace xmlns:XamlFiles="clr-namespace:SilverlightApplication13)

<UserControl xmlns:sdk="http://schemas.microsoft.com/winfx/2006/xaml/presentation/sdk"x:Class="SilverlightApplication13.MainPage"xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"xmlns:d="http://schemas.microsoft.com/expression/blend/2008"xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"xmlns:XamlFiles="clr-namespace:SilverlightApplication13" mc:Ignorable="d"d:DesignHeight="250" d:DesignWidth="350"> <Grid x:Name="LayoutRoot"> <sdk:TabControl > <sdk:TabItem Header="StackPanel"> <XamlFiles:StackPanel></XamlFiles:StackPanel> </sdk:TabItem> <sdk:TabItem Header="Canvas"> <XamlFiles:Canvas></XamlFiles:Canvas> </sdk:TabItem> <sdk:TabItem Header="Grid"> <XamlFiles:Grid></XamlFiles:Grid> </sdk:TabItem> </sdk:TabControl> </Grid> </UserControl>

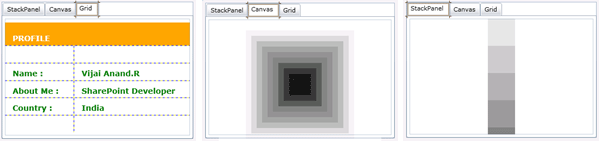

Result:
